Create and Connect OOB-Enabled Robot in Cogniteam

Step 1: Create Your Robot(OOB-Enabled)

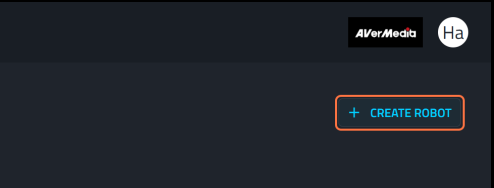

i. Log in to the Cogniteam platform and click Create Robot

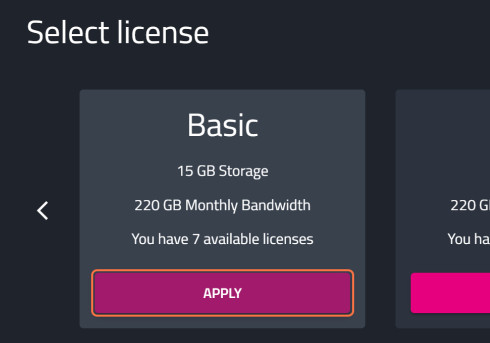

ii. Select an available plan for your robot and click APPLY

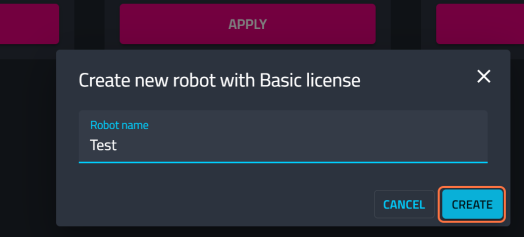

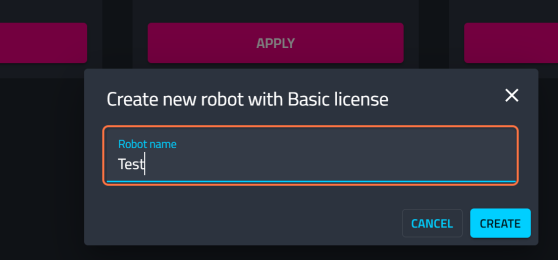

iii. Enter a name for your robot.

iv. Click CREATE to finalize the setup.

Step 2: Retrieve Your API Key

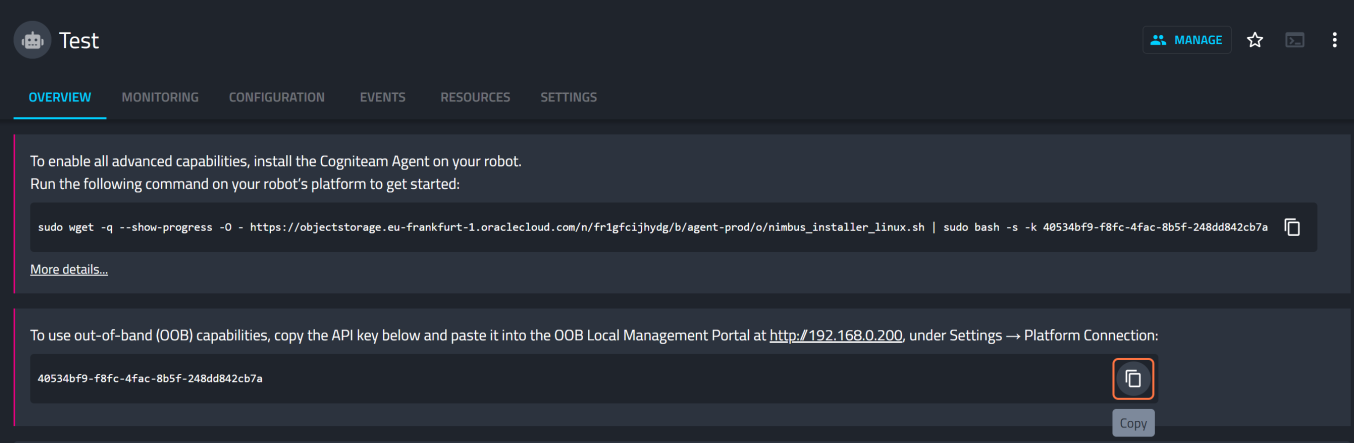

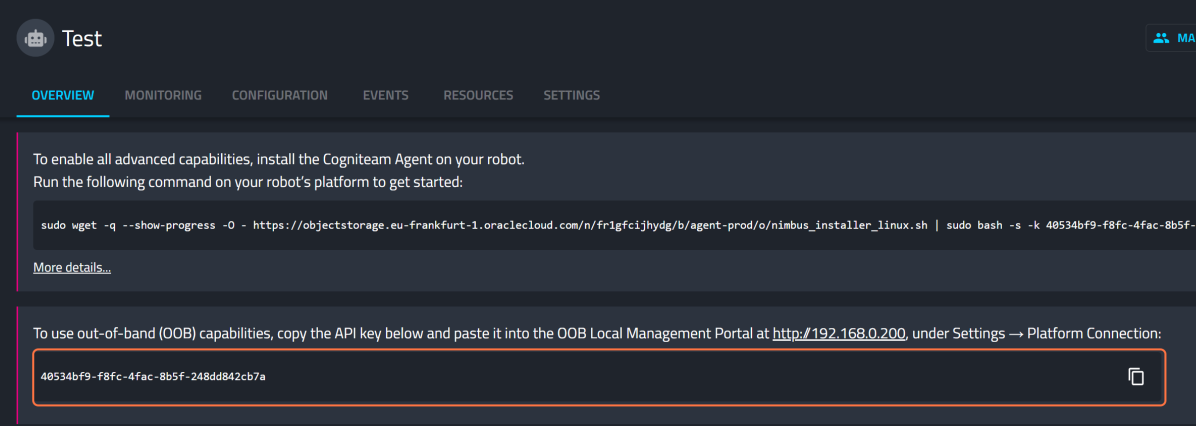

v. Locate the API Key in the robot settings.

vi. Click Copy to save the key to your clipboard.

Step 3: Connect to the Local Management Portal

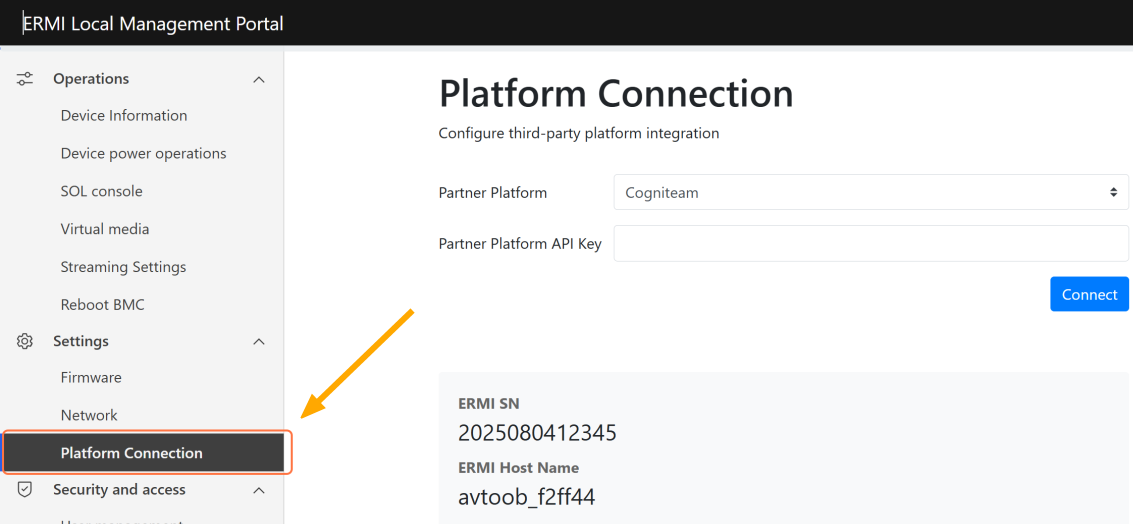

vii. Log in to the ERMI Local Management Portal and navigate to Platform Connection

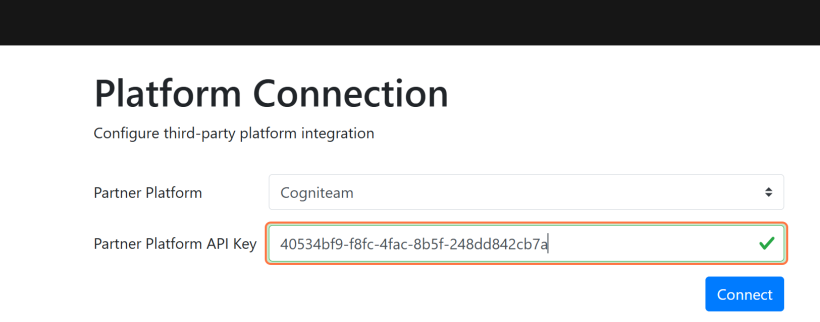

viii. Paste the copied API Key.

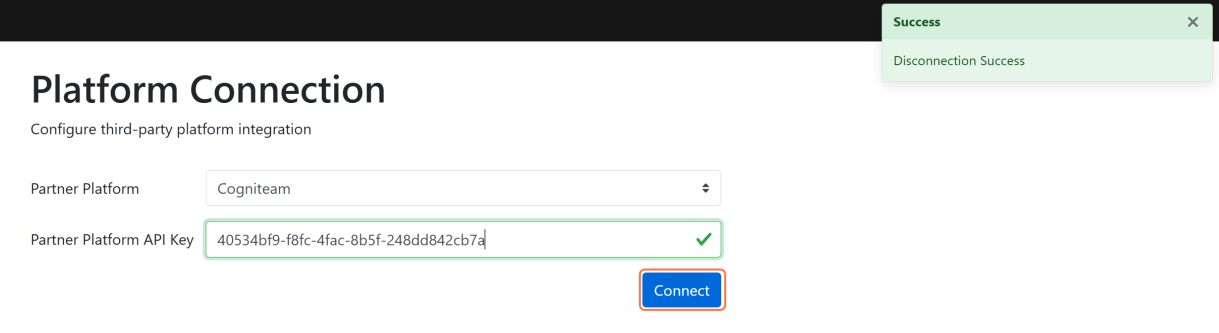

ix. Click Connect

Step 4: Complete OOB Pairing

x. Return to the Cogniteam platform and click the Out-of-Band tab.

Please ensure the OOB device has internet connectivity and that its system time is properly synchronized.

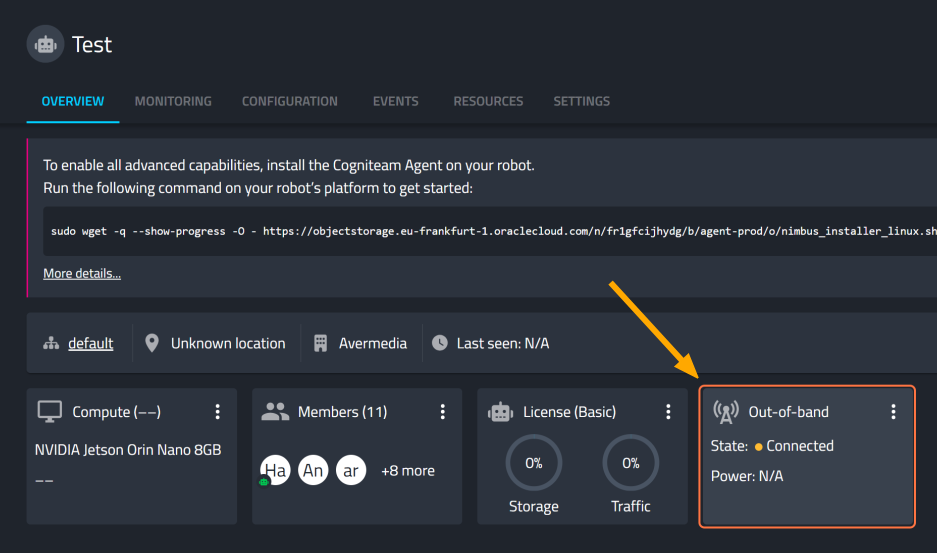

When you connect the OOB to the network, you will see robot Out-of-band State: Connected

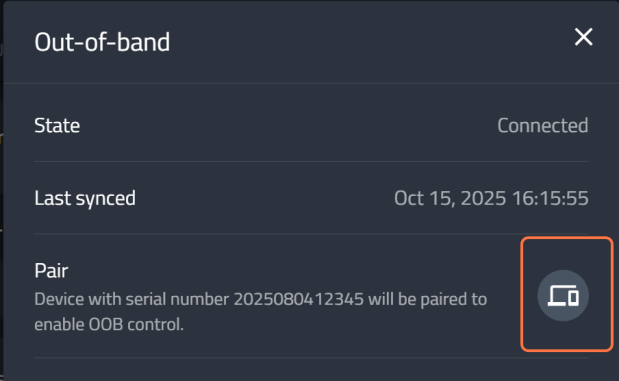

xi. Click the Pair button to complete the setup.

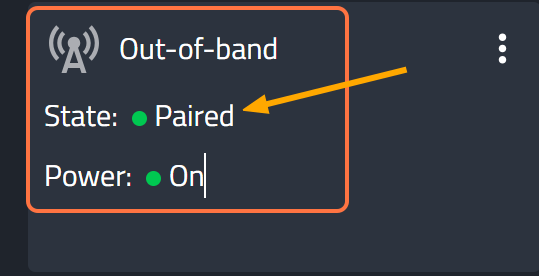

xii. Once successful, the system will show: State: Paired, Power: On
